Immediate Emergency Triage Protocol for Commercial Kitchen Operators

When a commercial reach-in freezer in Bethesda warms up fast, kitchen operators must immediately preserve internal thermal mass by sealing doors, verifying core food temperatures with calibrated needle probes, checking electrical supply continuity, inspecting magnetic perimeter door gaskets, and staging auxiliary cold storage. Executing these steps in sequence prevents food spoilage and health code violations.

Commercial kitchens operating along Bethesda Row, Woodmont Triangle, and near the National Institutes of Health campus subject refrigeration units to intense ambient heat and aggressive door cycles. When cabinet displays indicate upward temperature drift, executing an immediate triage protocol limits heat gain and safeguards valuable inventory. We instruct kitchen managers and line staff to perform these six sequential action steps:

1. Preserve Door Seal Integrity: Keep cabinet doors strictly closed to prevent thermal gain. A fully loaded commercial reach-in freezer maintains safe internal product temperatures for up to 4 hours without active refrigeration if perimeter door seals remain unbroken.
2. Measure Product Core Temperatures: Digital displays indicate return air temperatures rather than dense food mass. Insert a calibrated, sanitized needle probe thermometer into the center of stored product to establish actual thermal status.
3. Verify Electrical Supply and Airflow Clearance: Confirm that the dedicated wall outlet remains fully energized and the circuit breaker has not tripped under load. Ensure top-mounted or bottom-mounted condensing units maintain at least 4 inches of unblocked clearance from surrounding structures for adequate heat rejection.
4. Inspect Perimeter Gaskets and Thermal Seals: Check magnetic door gaskets for physical tears, alignment gaps, or localized frost accumulation. Humid ambient air entering the cabinet generates frost loads that rapidly block evaporator coil airflow.
5. Prepare Auxiliary Cold Storage: If internal core food temperatures approach 15 °F (-9.4 °C), immediately stage insulated transport containers with dry ice or initiate stock transfer to an auxiliary walk-in freezer.
6. Avoid Manual Defrost Execution: Do not trigger a manual defrost cycle without professional technical evaluation. If the defrost termination switch, heater element, or control board has failed, initiating a defrost forces intense electrical heat into the cabinet without restoring active cooling.

Primary Mechanical Root Causes Behind Rapid Temperature Spikes

Rapid temperature spikes in commercial reach-in freezers stem from severe evaporator coil icing, heavy airborne grease and dust accumulation on condenser coils, refrigerant charge loss, fan motor mechanical failures, or failed compressor start components. Diagnosing these mechanical failure points allows kitchen managers to isolate system bottlenecks and expedite professional technical recovery.

Commercial reach-in freezers experience sudden thermal loss primarily due to mechanical, electrical, or airflow disruptions within the sealed refrigeration circuit. Identifying specific failure symptoms assists facility managers in conveying accurate diagnostic details to our emergency repair staff, drastically reducing equipment downtime. We frequently encounter five primary mechanical failures during emergency calls in Bethesda:

• Heavy Evaporator Coil Icing: Compromised door gaskets or failed defrost heaters allow humid air to condense and freeze solid across the evaporator coils behind the rear plenum panel. This ice sheet completely blocks airflow, preventing the refrigerant circuit from absorbing thermal energy from the cabinet.
• Severe Condenser Coil Contamination: Airborne cooking oil, dust, and flour settle heavily between condenser coil fins in commercial kitchens. Restricted air movement across the condenser causes head pressure and discharge temperatures to spike, triggering the compressor internal thermal overload switch.
• Refrigerant Leaks and Charge Loss: Modern reach-in freezers utilize refrigerants like R-404A, R-448A, or eco-friendly hydrocarbon R-290 (propane). Thermal cycling stress and vibration fatigue at copper joints lead to refrigerant loss, leaving the compressor running continuously without generating cooling.
• Fan Motor Mechanical and Electrical Failures: Evaporator fans circulate cold air inside the cabinet, while condenser fans pull ambient room air across the high-pressure coil. Seized motor bearings, blown run capacitors, or damaged fan blades cause rapid system overheating.
• Relay and Start Component Failures: Start relays, hard start kits, and run capacitors deliver the high electrical torque required to start the compressor under load. When these components fail, the compressor draws locked-rotor amperage, emits a distinct clicking sound, and trips the thermal safety switch within 60 seconds.

Field Operations Case Studies: Resolving Complex Failures in Bethesda

Resolving sudden commercial freezer failures in Bethesda requires systematic physical testing combined with advanced digital diagnostics to overcome intense kitchen thermal demands. By combining thermal imaging with manifold gauge analysis, our field technicians isolate hidden mechanical defects, execute precise repairs, and protect high-value inventory for high-volume local foodservice operations under strict regulatory pressure.

Our commercial refrigeration team frequently resolves high-stakes cooling emergencies caused by complex mechanical and electrical interactions throughout Montgomery County. We utilize precision diagnostic tools to methodically isolate root causes and restore steady-state freezing performance under extreme field conditions.

• Intermittent Thermal Overload on an R-290 Reach-In at Woodmont Triangle: A high-volume restaurant reported that their two-door reach-in freezer drifted up to 28 °F (-2.2 °C) during peak dinner hours, even though the condenser coil appeared visually clean from the front access grill. Upon arrival, we connected digital manifold gauges and thermal imaging equipment. Our inspection revealed that airborne kitchen grease had combined with fine flour dust deep inside the center of the microchannel condenser fins, completely hidden from surface view. Under high ambient room temperatures during dinner service, thermal rejection failed, driving compressor shell temperatures above safe limits. We performed a non-corrosive chemical coil flush and pressure wash, lowering operating head pressure by 85 PSI and restoring cabinet stability to -5 °F (-20.5 °C).
• Welded Defrost Contactor Causing Cabinet Overheating in Bethesda Row: A catering facility experienced a sudden warming emergency where internal cabinet temperatures reached 35 °F (1.7 °C) while the compressor ran continuously. Our technical analysis revealed a welded-closed defrost contactor on the power board. This failure kept the electric defrost heating elements energized continuously while the compressor ran, effectively heating and cooling the cabinet simultaneously. We replaced the shorted contactor, recalibrated the digital control board, and restored thermal equilibrium, successfully preserving 14,000 US dollars of high-value catering inventory before critical food safety thresholds were exceeded.

Technical Diagnostic and Troubleshooting Matrix

A technical diagnostic matrix maps observable mechanical symptoms to specific root causes, enabling commercial kitchen operators to differentiate between basic operational maintenance and urgent refrigeration service. Utilizing conditional diagnostic pathways accelerates troubleshooting, minimizes downtime, and ensures that staff execute immediate operator verifications while waiting for certified technician intervention during emergencies.

Systematic triage requires matching observed operational symptoms with underlying mechanical failures to determine immediate operator checks and required professional interventions. Our diagnostic matrix simplifies this evaluation, allowing kitchen managers to distinguish between minor maintenance needs and critical technical failures requiring certified emergency refrigeration service.

Observed Symptom	Likely Mechanical Root Cause	Immediate Operator Verification	Emergency Technical Action Required
Cabinet blowing warm air, compressor clicks every 30 to 60 seconds	Faulty start relay, blown capacitor, or locked compressor rotor	Verify supply voltage at outlet; confirm main circuit breaker is engaged	Test relay and capacitor capacitance using a multimeter; replace failed start components or compressor assembly
Thick ice block visible behind rear internal plenum cover	Defrost heater failure, broken termination thermostat, or timer fault	Inspect perimeter door gaskets for gaps or air leaks	Perform electrical resistance testing on defrost elements and sensors; replace defective heaters or defrost control modules
Compressor runs continuously, cabinet warming, lines feel room temperature	Refrigerant leak, system charge loss, or damaged compressor internal valves	Check copper refrigerant lines and braze joints for oily dirt accumulation	Perform electronic leak detection and nitrogen pressure testing; repair leak, pull deep vacuum to 500 microns, and weigh in factory charge
Temperature rising rapidly, interior evaporator fans silent	Failed fan motor, defective door safety switch, or main board relay failure	Confirm door switches depress completely when cabinet doors are fully closed	Measure voltage at fan motor terminals; test switch continuity and replace defective evaporator fan assemblies
High temperature alarm sounding, top or bottom condensing unit hot to touch	Clogged condenser coil or failed condenser fan motor assembly	Inspect external coil fins for heavy dust, grease, or blocked airflow clearance	Perform chemical coil restoration and pressure flush; test motor windings and replace failed fan assemblies

Regulatory Food Safety, COMAR, and Environmental Compliance Guidelines

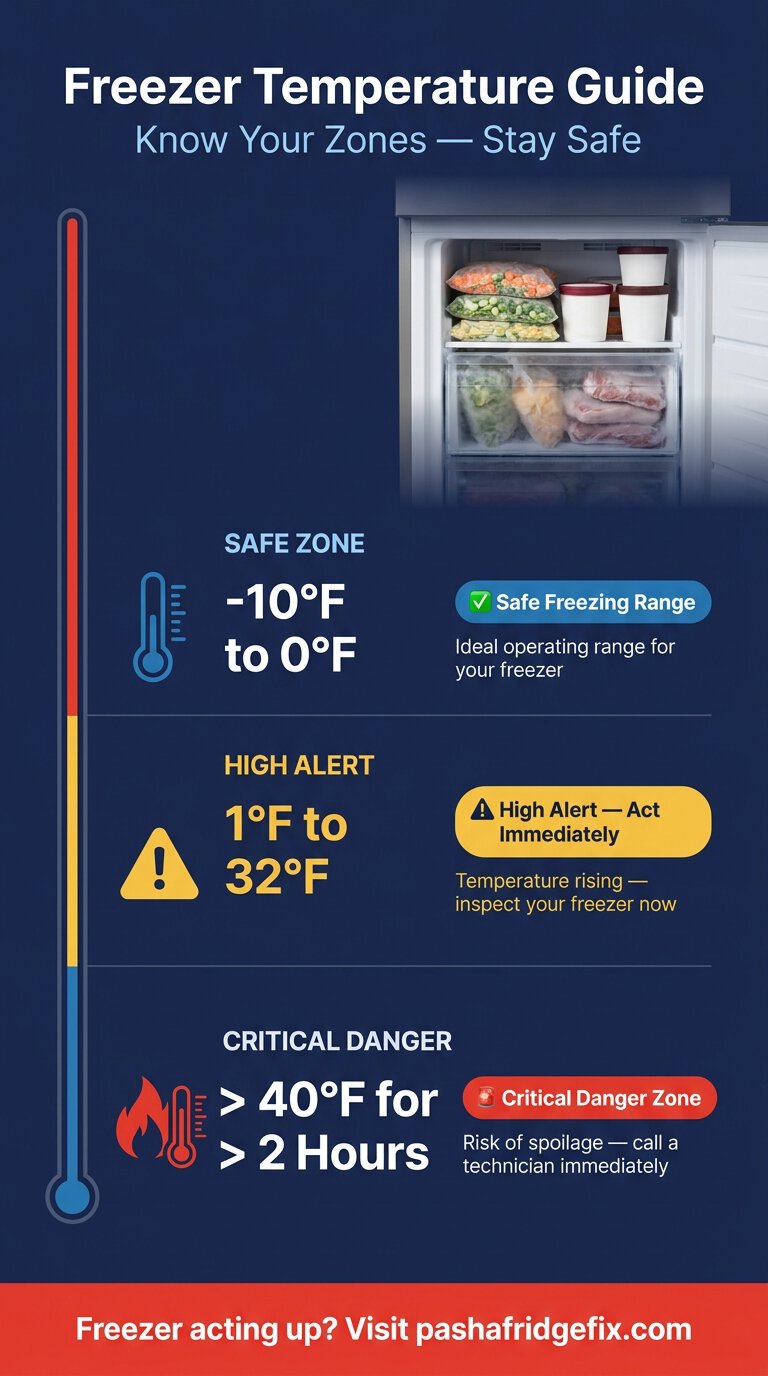

Commercial refrigeration compliance in Bethesda mandates adherence to Maryland health regulations and federal environmental mandates during unexpected thermal disruptions. Maintaining holding temperatures below 0 °F (-17.8 °C), executing food safety protocols for exposures above 40 °F (4.4 °C), and utilizing certified refrigerant recovery procedures ensure complete regulatory alignment and protect public health.

Commercial refrigeration management in Bethesda requires strict adherence to Maryland health codes and federal environmental standards during unexpected cooling outages. Operating under local regulations demands continuous thermal tracking, timely product evaluation, and certified refrigerant recovery to maintain complete regulatory compliance and ensure safe consumer dining experiences across Montgomery County.

• Mandated Holding Temperatures: Commercial reach-in freezers must maintain internal cabinet air temperatures between -10 °F and 0 °F (-23.3 °C and -17.8 °C) to prevent micro-thawing and bacterial proliferation.
• Critical Food Safety Limits: Perishable food products exposed to internal core temperatures above 40 °F (4.4 °C) for longer than 2 hours present severe foodborne illness hazards and must be evaluated for immediate disposal under state guidelines. Review the official FDA Emergency Food Safety Guidelines for comprehensive stock safety management.
• Maryland COMAR Compliance: Commercial kitchens in Montgomery County are regulated under COMAR 10.15.03 standards, requiring continuous monitoring devices calibrated to within plus or minus 2 °F. For official regulatory framework details, refer to the Maryland Department of Health Food Protection Division.
• Refrigerant Containment Regulations: Technical repairs involving refrigerant recovery, pressure testing, or system charging must strictly follow EPA Section 608 Stationary Refrigeration Regulations. Certified technicians must recover all class I, class II, and flammable hydrocarbon refrigerants without venting them to the atmosphere.

Frequently Asked Questions

Understanding the underlying mechanisms behind rapid freezer warming empowers kitchen operators in Bethesda to make informed triage decisions during refrigeration emergencies. Our expert responses address key operational concerns regarding airflow loss, holding times, power cycling, frost formation, and flammable hydrocarbon safety to ensure staff maintain regulatory compliance.

Why is my commercial reach-in freezer blowing warm air?

A commercial reach-in freezer blows warm air when its evaporator fan continues circulating cabinet air while the refrigeration circuit fails to absorb thermal energy. This failure typically stems from a failed compressor start relay, severe refrigerant leakage, an ice-logged evaporator coil, or a tripped compressor thermal overload caused by a clogged condenser coil. When heat absorption stops, fan operation merely circulates ambient indoor warmth through the cabinet.

How long can food stay frozen in a broken reach-in freezer?

A fully loaded commercial reach-in freezer maintains safe frozen product core temperatures for 2 to 4 hours without active cooling, provided doors remain closed. If the unit is only half full, safe holding time drops to 1 to 2 hours due to reduced internal thermal mass. Kitchen operators must measure internal core product temperatures directly using a calibrated needle probe thermometer rather than relying on digital air temperature displays.

Can I reset my commercial freezer by unplugging it?

Unplugging a commercial freezer for 5 to 10 minutes resets electronic control boards and clears temporary microprocessor programming glitches. However, power cycling will not repair mechanical failures such as defective start capacitors, ice-bound evaporator coils, or refrigerant leaks. If physical mechanical faults exist, professional technical diagnostic service remains mandatory.

Why is there heavy frost buildup inside my commercial reach-in freezer?

Heavy internal frost forms when moist ambient room air continuously enters the cabinet through compromised magnetic door gaskets or when the automatic defrost system fails. Key mechanical components responsible for defrost failures include burnt electric defrost heaters, defective defrost termination thermostats, or failed digital control modules. Left unaddressed, frost accumulation chokes off evaporator airflow and halts cooling performance entirely.

What should I do if my R-290 hydrocarbon freezer warms up suddenly?

Immediately disconnect electrical power at the main circuit breaker if an R-290 freezer warms up rapidly or emits unusual chemical odors. R-290 units utilize highly flammable propane refrigerant operating under pressure. Staff must maintain natural ventilation, avoid flipping nearby electrical switches to eliminate spark hazards, and contact an EPA Section 608 certified technician trained in flammable hydrocarbon systems.

Sources

Our technical guidance adheres strictly to established federal and state refrigeration, food safety, and environmental standards to ensure operational accuracy. We utilize verified regulatory frameworks from federal and state environmental agencies to govern our commercial diagnostic protocols, repair standards, and preventive maintenance strategies across Montgomery County.

• U.S. Food and Drug Administration (FDA): Food and Water Safety During Power Outages and Floods (https://www.fda.gov/food/buy-store-serve-safe-food/food-and-water-safety-during-power-outages-and-floods)
• U.S. Environmental Protection Agency (EPA): Section 608 Stationary Refrigeration Regulations (https://www.epa.gov/section608)
• Maryland Department of Health: COMAR 10.15.03 Food Service Facilities Compliance Standards (https://health.maryland.gov/phpa/OEHFP/OFPCHS/Pages/Home.aspx)
