IoT Monitoring Systems For DC Commercial Refrigeration Units

Managing commercial cold storage in the dense urban landscape of Washington DC presents a unique set of operational challenges. High property overhead, stringent district environmental health inspections, and strict federal food safety compliance mean that a single equipment failure can lead to catastrophic losses. In our engineering and field service experience across restaurants, hotels, hospitals, and food distribution hubs in DC, Arlington, and Silver Spring, traditional manual temperature logging and reactive maintenance models are no longer sufficient. Modern facilities require continuous, data-driven oversight.

Internet of Things (IoT) monitoring systems for commercial refrigeration units transform passive cooling equipment into intelligent, self-diagnosing assets. By deploying industrial-grade wireless sensor arrays, edge gateways, and predictive cloud analytics, commercial operators can protect valuable inventory, lower utility expenditures, and maintain regulatory compliance without burdening kitchen and facility staff.

Modern Commercial Refrigeration Compliance and Risk Management in Washington DC

Commercial refrigeration units in Washington DC must maintain internal cold holding temperatures at or below 41 degrees Fahrenheit to satisfy health regulations and mitigate microbial growth. Operating in dense urban kitchens requires continuous telemetry to prevent product loss, reduce high utility expenditures, and eliminate manual log compliance gaps.

Commercial food operations across the Washington DC metropolitan area face aggressive operational pressure from property overhead, strict municipal health code inspections, and regulatory oversight. Perishable inventory exposed to temperatures between 41 degrees Fahrenheit and 135 degrees Fahrenheit enters the thermal danger zone, where foodborne bacteria rapidly multiply. According to FDA Food Code guidelines, cold holding equipment must keep perishable items at or below 41 degrees Fahrenheit, while walk-in freezers must maintain internal environments below 0 degrees Fahrenheit. If temperatures exceed regulatory safety margins for longer than four hours, operators must discard the affected inventory.

In addition to health compliance, commercial refrigeration assets consume up to 40 percent of total electrical usage in commercial dining and retail food operations. Minor mechanical degradation, such as worn door gaskets or clogged condenser coils, forces compressors to run continuously, driving utility expenses significantly higher. Furthermore, compliance with EPA Section 608 mandates early leak detection and systematic repair protocols for commercial systems holding hydrofluorocarbon refrigerants. Facilities relying on manual paper logs often fail to catch micro-leaks or gradual temperature drift until total mechanical breakdown occurs.

Key regulatory and financial factors driving IoT adoption in Washington DC include:

• Stringent health department temperature compliance audits across District dining establishments.
• High replacement costs for spoiled commercial inventory, often exceeding ten thousand US dollars per walk-in failure.
• Strict federal mandates requiring meticulous, three-year historical temperature logs for food safety verifications.
• Escalating energy bills caused by undetected refrigeration component strain and excessive defrost cycles.

IoT Hardware Architecture for Walk-In Coolers and Commercial Freezers

An effective Internet of Things refrigeration architecture utilizes sub-gigahertz wireless sensor arrays, ruggedized temperature probes, and edge gateways to overcome Faraday cage interference from stainless steel walk-in panels. This infrastructure captures continuous environmental telemetry and securely transmits data to cloud platforms via cellular LTE-M or Ethernet.

Commercial walk-in coolers, reach-in freezers, and refrigerated display cases present severe physical obstacles to standard wireless communication. Polyurethane insulation, aluminum paneling, and dense stainless steel walls act as electromagnetic enclosures, blocking standard 2.4 GHz Wi-Fi and high-frequency cellular signals. In our installation projects across DC facilities, standard Wi-Fi sensors inside commercial walk-ins experience signal loss exceeding 85 percent.

To solve signal attenuation, we deploy industrial-grade sub-gigahertz wireless sensors operating on the 915 MHz LoRaWAN spectrum. These low-power radio signals easily penetrate dense metal walls and travel hundreds of feet through complex commercial building layouts. Telemetry data from internal probes flows to an exterior edge gateway mounted outside the walk-in box. The edge gateway buffers local data during internet outages and securely relays telemetry to cloud analytics platforms through encrypted cellular LTE-M or dedicated Ethernet.

Essential hardware components of an enterprise refrigeration IoT system include:

• Industrial sub-gigahertz temperature and humidity sensors rated for ambient environments down to minus 40 degrees Fahrenheit.
• External surface-mounted or immersion RTD probes attached to suction lines and evaporator discharge coils.
• Edge gateways with onboard storage and battery backup to store data during power grid interruptions.
• Non-invasive current transformers attached to compressor power leads to track real-time electrical amperage draw.

Predictive Maintenance Diagnostics and Early Fault Detection

Predictive IoT monitoring detects thermal drift, refrigerant loss, compressor short-cycling, and evaporator coil icing days before complete mechanical failure occurs. By analyzing real-time suction line temperatures, electrical current draw, and door opening durations, commercial service teams identify minor component degradation and prevent costly emergency service calls.

Traditional reactive service relies on thermostat alerts after temperatures have already risen into unsafe holding zones. In contrast, continuous IoT analytics track subtle thermodynamic relationships between compressor runtime, coil discharge temperatures, and ambient room conditions. For example, when a system begins leaking refrigerant, suction pressure drops while superheat increases. An IoT sensor array flags this widening thermal delta long before cabinet air temperatures shift.

Similarly, evaporator icing creates an insulating frost layer across the coil fins, restricting airflow and disrupting heat exchange. By comparing coil surface temperature against defrost cycle schedules and door sensor events, the monitoring platform detects restricted airflow immediately. Early detection allows our service technicians to intervene during planned maintenance hours rather than responding to emergency midnight compressor failures.

Common commercial refrigeration failure modes identified by predictive telemetry include:

• Refrigerant micro-leaks indicated by extended compressor runtimes and elevated superheat readings.
• Evaporator coil icing detected by persistent temperature differentials across the cooling coil.

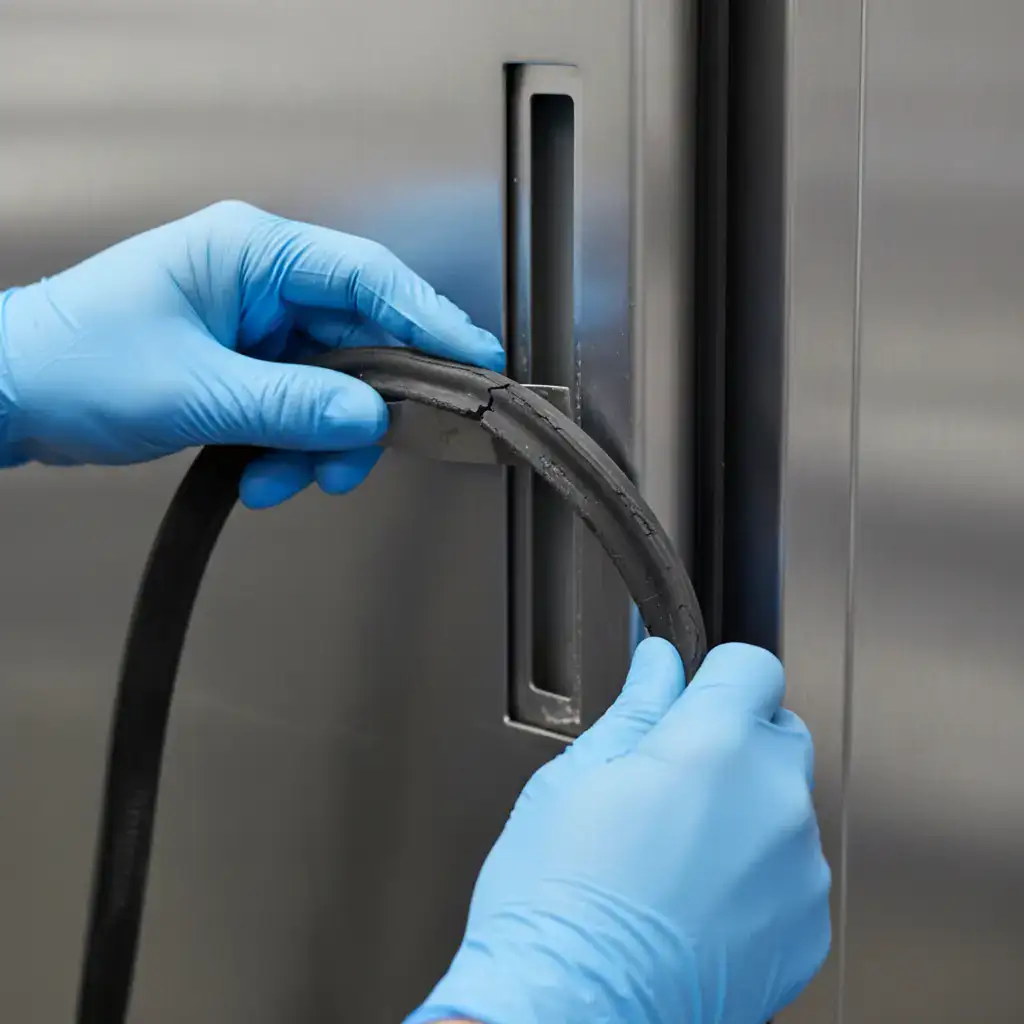

• Worn door magnetic gaskets identified by elevated interior humidity and prolonged pull-down cycles.
• Condenser coil fouling signaled by elevated discharge line temperatures during high ambient heat days.

Field Case Studies: Complex Commercial Refrigeration Failures and Resolutions

Our field engineering team routinely resolves complex commercial refrigeration failures caused by hidden thermal anomalies, ghost electrical trips, and micro-refrigerant leaks across Washington DC establishments. Deploying continuous IoT sensor arrays allows us to diagnose root mechanical causes that traditional manual inspections miss and implement permanent targeted field repairs.

In a downtown Washington DC hotel facility, the main banquet walk-in freezer suffered periodic temperature spikes up to 25 degrees Fahrenheit every afternoon. Previous service providers replaced expansion valves and topped off refrigerant without resolving the underlying issue. We installed an IoT diagnostic array with wireless current transformers on the compressor leads and temperature sensors on the defrost termination thermostat.

Our telemetry revealed that an improperly adjusted defrost clock initiated defrost cycles during peak kitchen loading hours when hot food pans were added to the unit. The combined thermal load from hot inventory and active electric defrost heaters created severe coil icing, which prevented proper cooling for hours afterward. We rescheduled the defrost cycles to 2 AM and adjusted the defrost termination temperature limit, immediately restoring stable sub-zero freezer holding.

In a second case at a Silver Spring medical research clinic, a critical inventory cooler suffered erratic high-pressure cutouts that tripped breaker switches randomly twice a week. Visual inspections revealed clean condenser coils and proper fan operation. Our IoT logging showed that ambient air temperatures around the air-cooled condenser skyrocketed above 115 degrees Fahrenheit whenever the adjacent kitchen exhaust duct activated, blowing hot air directly onto the intake grid. We installed a directional airflow baffle and adjusted the condenser ducting, completely resolving the pressure spikes and protecting 80,000 US dollars of medical supplies.

System Selection Framework: Comparing Wireless Telemetry Protocols

Selecting the ideal IoT monitoring protocol requires evaluating wireless range, wall signal penetration, battery consumption, and infrastructure costs across commercial facilities. Sub-gigahertz LoRaWAN provides superior wall penetration through walk-in metal walls, while Wi-Fi and Bluetooth mesh offer alternative deployment options depending on facility layout and network constraints.

When specifying IoT hardware for commercial refrigeration, facility managers must weigh protocol capabilities against physical infrastructure realities. While Wi-Fi systems feature low initial hardware costs, their high power consumption requires frequent battery changes or permanent external power wires. Bluetooth Low Energy (BLE) offers excellent battery longevity but suffers from severely limited signal range through stainless steel enclosures. Sub-gigahertz technologies, such as LoRaWAN operating at 915 MHz, offer long battery lifespans reaching up to five years on standard batteries alongside superior signal propagation through metal and concrete structures.

If your facility requires deep penetration through heavy insulated panels without running wiring, prioritize 915 MHz LoRaWAN networks; if you operate a single open display case with existing high-density network coverage, utilize Wi-Fi telemetry; if you seek low-cost modular expansion across close-proximity reach-in units, deploy Bluetooth mesh. Cellular direct-to-cloud sensors offer rapid standalone installation but carry monthly SIM subscription costs for every deployed sensor probe. Evaluating these performance parameters ensures selected hardware aligns with site architecture and long-term operating budgets.

Protocol	Signal Penetration	Battery Life	Installation Complexity	Recurring Operational Cost
LoRaWAN (915 MHz)	Exceptional (Through metal/concrete)	5 to 7 Years	Low (Single gateway needed)	Low (Single central gateway fee)
Wi-Fi (2.4 GHz)	Poor (Attenuated by metal walls)	6 to 12 Months	Moderate (Requires Wi-Fi coverage)	None (Uses existing internet)
Bluetooth Mesh	Moderate (Requires dense node mesh)	2 to 3 Years	Moderate (Requires repeater nodes)	Low (Local gateway required)
Cellular LTE-M	Good (Requires external antenna)	1 to 2 Years	Very Low (No local gateway)	High (Individual monthly SIM fees)

Implementation Protocol for IoT Commercial Fridge Operations

Deploying an IoT monitoring system across commercial refrigeration equipment requires a structured step-by-step process to ensure seamless hardware integration and network stability. Following a standardized installation protocol eliminates signal dead zones, verifies sensor accuracy, and ensures real-time alert dispatch to facility managers and emergency repair technicians.

1. Conduct a physical site survey and wireless signal audit across all walk-in boxes and reach-in cabinets to identify ideal gateway placement points.
2. Install external edge gateways in central ceiling or wall locations elevated above physical equipment obstructions to maximize sub-gigahertz signal coverage.
3. Mount wireless sensors inside refrigeration units away from direct air discharge ducts to ensure accurate ambient air readings rather than artificial air stream temperatures.
4. Attach surface RTD temperature sensors directly to suction lines, liquid lines, and evaporator coils using thermal paste and insulated wrap.
5. Clamp non-invasive current transformers onto main compressor power leads inside electrical control panels to monitor amp draw continuously.
6. Calibrate temperature probes using NIST-traceable ice bath standards to establish baseline accuracy tolerances within plus or minus 0.5 degrees Fahrenheit.
7. Configure cloud alert rules, escalation contact trees, and automated compliance report dispatches for kitchen management and field service teams.

Frequently Asked Questions

How do IoT sensors penetrate walk-in cooler metal walls?

IoT sensors penetrate metal walk-in cooler walls by transmitting data across sub-gigahertz radio frequencies like 915 MHz LoRaWAN. These lower frequencies possess longer wavelengths capable of diffracting around metal seams and penetrating structural density better than high-frequency Wi-Fi. In extreme cases, sensors use thin ribbon cables passed through existing drain ports to connect internal probes to external wireless transmitters.

What happens to refrigeration data during local power or internet outages?

Refrigeration data remains protected during outages because industrial edge gateways contain internal flash memory and battery backups to log telemetry locally. Once internet or cellular connectivity is restored, the gateway automatically syncs buffered historical records back to the cloud database. This ensures complete continuous compliance logs without missing data points during extended power interruptions.

Can IoT monitoring help lower commercial energy bills?

Yes, IoT monitoring reduces commercial energy bills by identifying inefficient operating conditions such as excessive defrost cycles, fouled condenser coils, and degrading door seals. By alerting technicians to fix minor mechanical inefficiencies, equipment operates at peak thermodynamic efficiency and consumes less electricity. On average, facility operators reduce refrigeration utility costs by 10 to 15 percent following deployment.

How often do wireless refrigeration sensors require battery replacement?

Industrial sub-gigahertz refrigeration sensors require battery replacement approximately every 5 to 7 years under standard operational transmission intervals. Because low-power wide-area networks consume minimal energy during data bursts, battery longevity far exceeds standard Wi-Fi sensors. Cloud monitoring platforms issue automatic low-battery warnings months before battery exhaustion occurs.

How do automated IoT logs satisfy Washington DC health inspection standards?

Automated IoT logs satisfy health inspection standards by recording time-stamped temperature readings every few minutes into tamper-proof, cloud-stored digital logs. Inspectors accept these certified digital reports during compliance audits because they eliminate manual logging gaps and human errors. Operators can instantly export downloadable PDF or CSV records spanning weeks or months directly from the cloud platform.

Sources

• Food and Drug Administration (FDA) – Retail Food Protection & Food Code: https://www.fda.gov/food/retail-food-protection/fda-food-code
• Environmental Protection Agency (EPA) – Section 608 Stationary Refrigeration Leak Repair Requirements: https://www.epa.gov/section608
