How Coastal Salt Air Destroys Refrigeration Equipment And How To Stop It

Table of Contents

The Science of Salt Air Corrosion and Electrochemical Oxidation

Coastal salt air destroys commercial refrigeration equipment through accelerated electrochemical oxidation, galvanic coupling, and localized pitting that dissolve bare metals and rupture heat exchanger coils. Airborne sodium chloride particles settle on colder metal surfaces, attracting ambient humidity to form a highly conductive liquid film. We observe unmanaged refrigeration systems suffering severe structural breakdown and catastrophic refrigerant leaks within twelve to twenty-four months of coastal installation.

Salt air corrosion operates through an electrochemical cell mechanism where moisture and microscopic chloride ions act as an active electrolyte. Ocean spray generates suspended aerosol particles that travel up to twenty miles inland on coastal wind currents. When these particles land on copper tubes and aluminum cooling fins, they create galvanic currents between dissimilar metals. The aluminum fin serves as a sacrificial anode and corrodes, while the copper suction tubing acts as a cathode.

Cold evaporator and condenser surfaces in commercial refrigeration units accelerate this destruction by producing continuous surface moisture. Condensation keeps the chloride film wet, which speeds up chemical reaction rates and concentrates aggressive salt ions. High humidity combined with elevated thermal cycling creates ideal operating conditions for rapid metallic decay.

Key failure modes that we observe on coastal commercial refrigeration systems include:

Pitting Corrosion: Penetration of protective oxide layers by chloride ions, forming deep microscopic channels through copper lines and aluminum channels that trigger pinhole refrigerant leaks.
Crevice Corrosion: Accumulation of stagnant saline moisture within micro-gaps between fin-to-tube joints, panel seams, and mounting brackets where restricted oxygen levels create highly acidic micro-environments.
Stress Corrosion Cracking: Combined mechanical vibration from compressor operations and tensile stress in high-chloride marine environments causing sudden catastrophic cracking on discharge lines.
Microchannel Coil Failure: Rapid dissolution of thin aluminum walls in modern microchannel heat exchangers, leading to total coil rupture when installed without protective marine barriers.

Material Selection: Building Marine-Grade Resistance

Specifying marine-grade metallurgy and tested thermal protective coatings during initial equipment procurement provides the most effective long-term defense against salt air corrosion. Substituting standard commercial metals with marine-grade stainless steels and factory-applied coil treatments dramatically reduces long-term commercial fridge repair costs. Guidance from the Association for Materials Protection and Performance (AMPP) confirms that proper material selection during initial equipment design remains the most cost-effective solution against atmospheric degradation.

Stainless Steel Metallurgy and Alloys

Selecting appropriate stainless steel alloys determines whether commercial refrigeration cabinets and structural framing can withstand relentless coastal salt spray exposure. Standard commercial grade alloys fail rapidly when exposed to constant coastal humidity and wind-blown chloride particles. We evaluate environmental corrosivity, ambient salinity levels, and mechanical stress profiles to select the optimal alloy grade for each application.

Type 304 Stainless Steel: Contains eighteen percent chromium and eight percent nickel, offering basic atmospheric protection suitable for indoor commercial kitchens. In outdoor coastal environments with chloride concentrations exceeding two hundred parts per million, Type 304 experiences heavy pitting and superficial tea-staining.
Type 316 and 316L Stainless Steel: Formulated with molybdenum additions alongside chromium and nickel to resist chloride-induced pitting. Type 316L features lower carbon content to prevent intergranular corrosion during structural welding on compressor frames and exterior housings.
2205 Duplex Stainless Steel: Combines austenitic and ferritic microstructures to yield twice the yield strength of Type 316 steel. This alloy delivers superior structural resistance against stress corrosion cracking on offshore installations and coastal facilities subject to direct ocean splash.
Isolation Fasteners: Structural fasteners made from 316 stainless steel must incorporate neoprene or nylon insulating washers to prevent direct galvanic contact against aluminum or painted steel panels.

Coated Coil Technologies and Testing Standards

Protecting commercial condenser coils requires ultra-thin protective coatings that isolate reactive metal surfaces from airborne chlorides without degrading thermal heat transfer efficiency. Heavy industrial paints insulate coil surfaces, raising head pressures and destroying compressor operating efficiency. Engineering standards published by the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) emphasize that coil coatings must maintain negligible thermal resistance while offering continuous chemical isolation.

Historically, manufacturers evaluated coatings using static salt spray testing under ASTM B117 standards. Modern marine engineering requires testing under ISO 12944-9 cyclic exposure protocols. ISO 12944-9 subjects test specimens to continuous seven-day cycles of severe ultraviolet radiation, concentrated salt spray, and sub-zero freezing to simulate severe C5-M marine environments.

Electro-deposition (E-Coat): Epoxy paint films electrochemically deposited in automated immersion tanks to ensure uniform coverage across dense coil fins. E-coating provides consistent film thickness with minimal impact on heat transfer performance.
Baked Phenolic Coatings: Thermosetting phenolic resins applied through multiple dip cycles and oven-cured at elevated temperatures. Baked phenolics withstand over fifteen thousand hours of salt spray testing and offer resistance against heavy industrial airborne pollutants.
Flexible Epoxy Polymer Coatings: Thermally bonded coatings engineered for flexibility to accommodate continuous thermal expansion and contraction cycles. These flexible layers prevent coating micro-cracking and delamination on high-load commercial condensing units.

Cabinet Finishing: Powder Coating vs Liquid Paint

Factory-applied thermosetting polymer powder coatings outperform conventional wet-spray paint systems on commercial refrigeration cabinets by forming a dense molecularly cross-linked barrier shell. Powder coatings resist impact chipping and chemical breakdown much better than standard liquid paints. We evaluate cabinet coating options based on expected lifespan and environmental exposure severity.

Coating System	Environmental Durability	Substrate Adhesion	Typical Lifespan in Coastal Zones	Relative Initial Cost
Standard Liquid Paint	Low	Fair	1 to 3 Years	Baseline
Polyester Powder Coating	Moderate	Good	5 to 7 Years	1.5x Baseline
Epoxy Powder Coating	High	Excellent	8 to 12 Years	2.2x Baseline
Epoxy-Polyester Hybrid Powder	Very High	Superior	10 to 15 Years	2.8x Baseline
Fluoropolymer FEVE Coating	Maximum	Superior	20+ Years	4.5x Baseline

Field-Applied Protective Coatings and Treatments

Field-applied coatings and penetrants provide essential post-assembly protection for retrofitting installed equipment and protecting untreated commercial refrigeration units. These specialized treatments seal exposed copper braze joints, electrical terminals, and structural steel frames against aggressive salt air intrusion. We apply field treatments systematically to extend service life and prevent costly commercial fridge repair interventions.

Spray-On Coil Retrofits

Aerosol and spray-applied thin-film polymer coatings offer flexible corrosion protection for field-installed condenser and evaporator assemblies. These specialized treatments allow us to protect legacy equipment operating in severe coastal environments without removing coils. Proper surface cleaning and degreasing are mandatory before applying any spray-on coil treatment.

GulfCoat Auto-Dry Aerosol: A water-borne synthetic polymer formulation designed to withstand severe salt spray and solar ultraviolet exposure. It dries rapidly and maintains rated thermal efficiency when applied at controlled thicknesses.
HereShield Air-Dry DTM: A high-performance direct-to-metal coating that provides chemical and salt spray resistance without requiring specialized curing ovens. We use this formulation for rapid field touch-ups on exposed copper headers and structural brackets.
Nyalic Micro-Thin Polymer: A clear resin that seals electrical control panels, circuit boards, and exposed copper tubing against moisture-induced tracking and arcing.

Rust Inhibitor Sprays and Sacrificial Barriers

Unpainted structural channels, cabinet hinges, fan guards, and mounting hardware require periodic applications of penetrating corrosion inhibitors to seal out moisture. These liquid barriers fill microscopic surface pores and exclude oxygen and water from bare metal substrates. We match inhibitor formulas to specific hardware materials and operating conditions.

Product Category	Key Active Compounds	Protection Period	Ideal Target Application	Removal or Cleaning Method
Petroleum Waxy Inhibitors	Paraffin wax and mineral spirits	6 to 12 Months	Cabinet frames and structural steel	Solvent degreaser wash
Synthetic Dry-Film Coatings	Fluoropolymer resins	12 to 24 Months	Painted panels and metal enclosures	Alkaline detergent cleaning
Lanolin-Based Compounds	Refined lanolin oils and wool wax	12 to 18 Months	Exposed copper and marine mounts	Biodegradable degreaser
Dielectric Compound Sprays	Synthetic fluids and silicone grease	6 to 12 Months	Electrical terminals and contactors	Contact cleaner spray

Cathodic Protection and Sacrificial Anodes

Water-cooled condensers, evaporative cooling towers, and condensate drainage pans require cathodic protection systems to mitigate aggressive galvanic metal loss. Installing zinc or aluminum sacrificial anodes within wet drainage basins forces the anode to corrode preferentially, safeguarding structural steel walls and copper heat exchanger tubes. We inspect sacrificial anodes quarterly and replace them whenever fifty percent of their mass has dissolved.

Case Studies: Resolving Complex Coastal Refrigeration Failures

Real-world field engineering cases demonstrate how salt air damages commercial refrigeration equipment and how structured engineering solutions eliminate recurring breakdowns. Diagnosing unique environmental failure modes allows us to design permanent, custom-engineered remediation plans. The following field cases illustrate our practical approach to resolving complex coastal equipment failures.

Case Study 1: Pinhole Microchannel Failures at a Beachfront Resort Rack

An oceanfront resort experienced continuous low-pressure trip-outs on a multi-compressor parallel condensing rack situated fifty yards from the ocean shoreline. High-density aluminum microchannel condenser coils developed multiple pinhole leaks within fourteen months of initial installation. This failure pattern resulted in thousands of US Dollars in lost refrigerant and frequent system downtime during peak hotel occupancy.

We conducted a site audit and determined that heavy salt deposition combined with nightly condensation cycles caused intense galvano-chemical pitting in the aluminum microchannels. To resolve this recurring failure permanently, we performed a two-step remediation protocol:

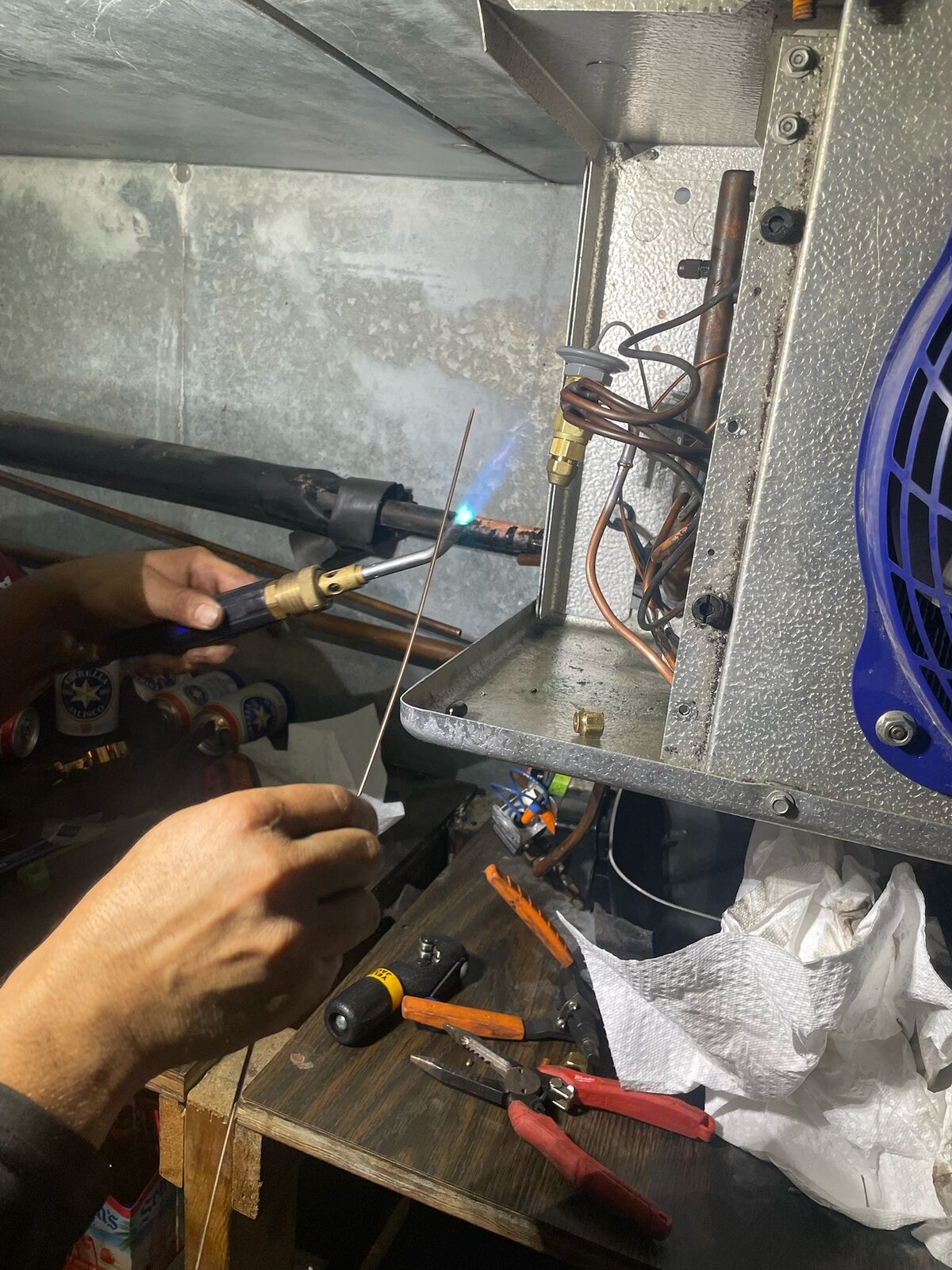

We replaced the corroded microchannel coils with custom copper-tube and aluminum-fin coils coated with a factory-dipped, baked phenolic coating rated for ISO 12944-9 severe exposure.
We installed an automated low-pressure freshwater rinse system that activated daily for two minutes at four in the morning to wash away accumulated salt crystals before morning heat exposure.

Over five years of continuous monitoring, the resort rack maintained factory operating pressures with zero coil leaks. This engineering intervention saved the resort an estimated thirty-five thousand US Dollars in emergency repair service calls and refrigerant replacement fees.

Case Study 2: Galvanic Cabinet Dissolution on Commercial Seafood Freezers

A coastal seafood processing plant operated three high-capacity walk-in blast freezers. Standard zinc-plated steel bolts directly attached structural steel cabinet frames to aluminum floor thresholds. Saltwater dripping from processing crates formed a continuous conductive electrolyte bridge, causing extreme galvanic corrosion that severed the floor anchors and destroyed structural panel alignment.

We executed a complete structural restoration utilizing non-conductive mechanical isolation techniques across all cabinet mounting zones:

We extracted the corroded steel fasteners, cut away damaged floor panel sections, and rebuilt the base frames.
We re-anchored the freezer cabinets using Type 316L stainless steel hardware fitted with heavy-duty neoprene isolator sleeves and non-conductive nylon washers.
We ground all steel weld zones clean, applied a zinc-rich cold-galvanizing compound, and sealed the structural assemblies with a high-build marine epoxy topcoat.

Quarterly structural inspections over four years confirmed zero metal degradation across all anchor points. This mechanical isolation strategy successfully eliminated cabinet distortion and preserved critical freezer door sealing integrity.

Comprehensive Maintenance Protocols for Coastal Equipment

Disciplined preventative maintenance routines are essential to prevent aggressive coastal salt air from destroying commercial refrigeration assets. Standard annual service visits are entirely inadequate for equipment operating near saltwater shorelines. We implement rigorous weekly, monthly, and quarterly maintenance schedules tailored specifically to site proximity to open water.

Weekly Maintenance Routines

Weekly maintenance focuses on removing surface salt deposits before they accumulate and initiate chemical oxidation. Low-pressure freshwater rinses protect exterior cabinet panels, door gaskets, and exposed coil faces.

Perform a thorough low-pressure freshwater rinse on exterior cabinet panels and condenser coil faces using a standard hose nozzle on a wide fan setting.
Wipe down exterior Type 316 stainless steel surfaces using microfiber cloths soaked in neutral-pH soap solutions, wiping parallel to the surface grain.
Never use high-pressure power washers on commercial refrigeration equipment, as high pressure bends fragile aluminum fins, damages rubber panel gaskets, and forces saline water deep into electrical control boxes.

Monthly Deep Cleaning Protocols

Monthly maintenance protocols neutralize accumulated chloride ions and restore proper heat exchanger airflow. Specialized cleaning agents dissolve tough salt crusts without attacking protective coil coatings.

Apply specialized non-acidic, self-foaming coil cleaners engineered specifically to neutralize active chloride ions without damaging protective phenolic or epoxy coatings.
Flush coils thoroughly with clean fresh water until the runoff water appears crystal clear and tests neutral for chemical residues.
Apply dielectric grease or waxy rust preventatives to cabinet latches, exposed bolt heads, and door hinge assemblies.
Clean condensate collection pans and treat drainage lines with salt-neutralizing tablets to prevent biological growth and localized pan pitting.

Quarterly System Inspections

Quarterly inspections identify micro-corrosion, electrical degradation, and minor refrigerant leaks before they trigger major equipment outages. Thorough system testing ensures electrical reliability and mechanical performance.

De-energize electrical power and inspect contactors, relays, and terminal blocks for green copper carbonate buildup or white zinc oxidation.
Tighten electrical terminal screws to manufacturer torque settings and apply a protective layer of spray-on dielectric barrier compound.
Conduct electronic leak detection across all copper braze joints, expansion valves, and coil return bends.
Inspect cabinet panel seams and penetrations, re-applying marine-grade polyurethane sealant where old sealants show shrinking or cracking.

Semi-Annual Professional Inspections

Semi-annual technical audits utilize advanced testing equipment to measure material loss and evaluate structural integrity quantitatively. These non-destructive tests allow us to forecast asset longevity accurately.

Measure protective coating thickness on cabinet panels using magnetic dry film thickness gauges to detect coating erosion before surface rust appears.
Perform ultrasonic wall thickness testing on critical copper suction lines and receiver pressure vessels to confirm metal loss remains within safe limits.
Scan electrical control panels using infrared thermal imaging under full electrical load to spot high-resistance connections caused by terminal micro-corrosion.

Selecting Equipment for Coastal and Offshore Installations

Procuring marine-spec equipment during facility construction or replacement avoids expensive field retrofits and recurring commercial fridge repair expenses. Specifying high-grade alloys, coated coils, and weatherproof electrical enclosures extends equipment service life significantly. We select component materials based on proximity to saltwater shorelines and atmospheric corrosivity levels.

Component or Subsystem	Standard Inland Specification	Coastal Specification (5 to 20 Miles Inland)	Severe Marine or Offshore (Under 5 Miles)
Exterior Cabinetry	Painted galvanized steel	Type 304 Stainless Steel	Type 316 or 316L Stainless Steel
Condenser Coil Fins	Raw aluminum fins	Factory epoxy-coated aluminum	Heresite baked phenolic or E-Coat
Evaporator Coils	Raw aluminum fins and copper tube	Epoxy-coated fin stock	E-coated copper tubes and copper fins
Fasteners and Hardware	Zinc-plated carbon steel	18-8 Stainless steel	Type 316 Stainless Steel with neoprene isolators
Electrical Enclosures	NEMA 1 or NEMA 3R	NEMA 3R stainless steel with conformal boards	NEMA 4X Type 316 stainless steel with potted boards
Fan Motor Assemblies	Standard totally enclosed	Sealed ball bearings with epoxy painted frame	IP66 marine-rated cast iron or 316 stainless

Location and Orientation Guidelines

Strategic equipment placement mitigates direct environmental exposure and extends operational lifespan. Careful placement shields condensing units from direct wind-blown ocean spray.

Orient outdoor condensing units so that fan discharge grilles face away from prevailing ocean winds to reduce salt spray accumulation.
Install outdoor condensing units under protective overhangs or architectural awnings to minimize rain and salt mist exposure while maintaining unobstructed airflow.
Install MERV 13 air filtration on indoor HVAC fresh air intakes to capture airborne salt aerosols before they reach indoor walk-in evaporators. Maintain positive building air pressure to prevent unconditioned salt air infiltration.

Remediation Strategies for Existing Corrosion

Systematic structural remediation halts metal loss and restores operating stability when corrosion is present on existing refrigeration equipment. Timely intervention prevents surface oxidation from turning into structural structural failure or total system pressure loss. We follow strict surface preparation and chemical treatment protocols when restoring corroded refrigeration assets.

Restoring Cabinet Surfaces and Frame Metal

Restoring corroded structural steel cabinets requires thorough mechanical cleaning followed by protective chemical coatings. Surface preparation determines coating adhesion and long-term repair durability.

Mechanically remove loose rust scale and flaking paint using wire wheel brushes or eighty-grit abrasive paper down to bare metal.
Degrease the target area using isopropyl alcohol or marine degreasing solvents to remove oil and residual salt deposits.
Apply a phosphoric-acid rust converter to transform residual micro-pits of iron oxide into an inert ferric phosphate layer.
Prime cleaned steel surfaces with a high-solids zinc-rich epoxy primer applied at a minimum thickness of two point five mils dry film thickness.
Apply two final topcoats of two-component aliphatic polyurethane or marine-grade epoxy enamel paint.

Repairing Stainless Steel Pitting

Pitting corrosion on stainless steel panels must be treated promptly to prevent deep metal perforation. Chemical passivation restores the continuous protective chromium oxide film on stainless steel surfaces.

Grind out deep localized pitting corrosion using dedicated stainless steel wire wheels or aluminum oxide grinding discs that have not been contaminated by carbon steel.
Apply a chemical passivating paste containing citric or nitric acid directly onto the cleaned stainless steel surface. Passivation chemically removes free iron particles and restores the self-healing chromium oxide film.

Repair vs Replacement Decision Framework

Evaluating whether to repair or replace corroded refrigeration assets requires comparing immediate restoration costs against expected equipment lifespan. We use structured criteria to guide facility operators toward the most financially sound choice.

Assessment Metric	Favorable Condition for Repair	Favorable Condition for Replacement
Equipment Operating Age	Under 5 years of service	Over 8 years of service
Metal Mass Loss Extent	Surface oxidation with under 15% frame loss	Deep structural pitting with over 30% metal loss
Circuit Integrity	Zero leaks or single isolated joint leak	Multiple pinhole leaks in heat exchanger coils
Estimated Repair Expenditure	Under 30% of new equipment replacement cost	Exceeds 50% of new equipment replacement cost
Refrigerant Compliance	Modern HFO/HFC blends like R-448A or R-454A	Phased-out refrigerants like R-22 or R-404A

Specialized Commercial Applications: Walk-Ins, Reach-Ins, and Ice Machines

Different types of commercial refrigeration equipment exhibit distinct vulnerability profiles when operated in humid, salt-rich coastal environments. Customizing protective measures to specific equipment categories ensures high operational reliability. We apply targeted protection strategies across walk-ins, display cases, and ice-making equipment.

Walk-In Coolers and Freezers

Walk-in structures operating in coastal facilities suffer severe panel seam degradation when saline air penetrates insulated wall joints. Salt air trapped inside wall insulation panels creates hidden moisture channels that corrode structural locking cams from the inside out. We apply marine-grade polyurethane sealants along all exterior panel joints and install Type 316 stainless steel floor thresholds with non-conductive thermal break strips.

Reach-In Display Cases

Frequent door openings on commercial reach-in cases pull humid salt air into the refrigerated cavity, causing rapid evaporator coil frosting and drain pan corrosion. Installing self-closing door hardware, fitting PVC strip curtains, and wiping magnetic door gaskets weekly removes destructive salt accumulation. These operational adjustments preserve flexible vinyl magnetic door seals and prevent perimeter cabinet rust.

Commercial Ice Machines

Commercial ice makers face double corrosion threats from airborne coastal salt spray and high dissolved chloride levels in coastal water supplies. Elevated water salinity pits evaporator plates and causes nickel plating to peel off freezing grids.

Install commercial water filtration systems, such as reverse osmosis units or demineralizers, to strip dissolved chlorides from incoming water supplies.
Execute monthly sanitization and descaling procedures using manufacturer-approved non-corrosive citric acid cleaning solutions.

Corrosion Monitoring, Documentation, and Testing Metrics

Quantitative corrosion monitoring allows facility managers to track equipment deterioration scientifically rather than reacting after major component failures occur. Tracking degradation rates helps optimize routine service scheduling and capital replacement planning. We implement standardized measurement protocols across coastal commercial facilities.

Corrosion Coupon Testing: Mount metal test coupons near outdoor condensing units in accordance with AMPP SP0775 standards. Remove and weigh test coupons quarterly to calculate precise atmospheric corrosion rates expressed in mils per year.
Standardized Visual Rating Systems: Record monthly inspection findings by grading surface rust against ASTM D610 visual standards to track coating breakdown.
Dry Film Thickness Tracking: Inspect cabinet paint coatings semi-annually with calibrated eddy-current thickness gauges, scheduling re-coating when coating thickness decreases by twenty percent.

Lifecycle Financial Cost Analysis: Prevention vs Reactive Repair

Investing in marine-grade materials and comprehensive preventative maintenance requires higher initial capital expenditure but yields dramatic long-term savings. Unprotected equipment in coastal settings fails rapidly, driving up emergency commercial fridge repair bills and forcing early capital replacement. We track operational expense data across coastal installations to calculate lifecycle costs.

Operating Strategy	Initial Equipment Cost	5-Year Maintenance and Repair Cost	10-Year Cumulative Cost (Including Replacement)	Expected Asset Service Life
Unprotected Standard Unit	8,000 US Dollars	6,500 US Dollars	22,500 US Dollars (Requires 2 full unit replacements)	3 to 5 Years
Basic Maintenance (Freshwater wash only)	8,000 US Dollars	3,200 US Dollars	14,400 US Dollars (Requires 1 unit replacement)	6 to 8 Years
Advanced Protection (Coated coils + monthly service)	10,500 US Dollars	2,100 US Dollars	12,600 US Dollars (No unit replacement required)	10 to 12 Years
Marine-Grade Package (316SS + Heresite + Full Protocol)	13,000 US Dollars	1,400 US Dollars	14,400 US Dollars (Zero replacement; full structural integrity)	15 to 20 Years

Financial calculations reflect average cost data for a commercial three-horsepower outdoor condensing unit installed within one mile of a saltwater shoreline. All figures are expressed in US Dollars.

Strategic Recommendations for Facility Managers

If you operate commercial refrigeration equipment within five miles of a coastline, prioritize installing factory-coated coils and Type 316 stainless steel cabinetry during equipment procurement. If you manage existing standard equipment, implement immediate weekly low-pressure freshwater rinses and apply field-grade polymer coil retrofits. If you experience recurring pinhole leaks or structural frame dissolution, execute mechanical galvanic isolation using neoprene hardware and install automated daily coil rinsing systems.

Frequently Asked Questions

How far inland does coastal salt air destroy refrigeration equipment?

Salt air corrosion damages commercial refrigeration equipment installed up to twenty miles inland from ocean shorelines. While the most aggressive metal loss occurs within the first five miles where ocean fog and wind-borne spray are heavy, microscopic sodium chloride particles drift significant distances on prevailing winds. Equipment located within twenty miles of saltwater requires routine freshwater rinsing and protective surface coatings.

Can we spray standard aerosol paint on commercial condenser coils?

No, standard aerosol paint or store-bought spray paint should never be applied to commercial condenser coils. Conventional paint forms a thick thermal insulating layer that impedes heat dissipation, drives up compressor head pressures, and causes early compressor motor failure. Heat exchanger coils must only be treated with specialized thin-film engineered coatings designed specifically for refrigeration heat transfer applications.

What is the difference between ASTM B117 and ISO 12944-9 corrosion testing standards?

ASTM B117 is a static corrosion test that continuously exposes test specimens to a salt spray fog at fixed temperatures. ISO 12944-9 is a cyclic testing standard that subjects specimens to alternating cycles of severe salt spray, intense ultraviolet exposure, and freezing temperatures over twenty-five weeks. ISO 12944-9 provides a far more accurate representation of real-world marine conditions than static testing methods.

How frequently should we wash outdoor condensing units located near the beach?

Outdoor condensing units located within one mile of the ocean should receive a low-pressure freshwater rinse once per week. For systems installed between one and five miles inland, bi-weekly freshwater rinsing is recommended. Units operating between five and twenty miles inland require monthly freshwater flushing.

Why are aluminum microchannel coils more vulnerable to salt air than standard copper-tube coils?

Microchannel coils feature extremely thin extruded aluminum tube walls designed to maximize thermal transfer efficiency. Because the metal walls are thin, localized pitting corrosion from chloride ions penetrates through the tube wall quickly, causing total refrigerant loss. Standard copper-tube coils possess thicker tube walls that provide greater structural allowance against pinhole corrosion leaks.

Sources

Association for Materials Protection and Performance (AMPP) – Standards and Surface Protection Practices: https://www.ampp.org
American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) – Environmental and Safety Guidelines: https://www.ashrae.org
