Washington Technician’s Tips For Glass Door Merchandisers

Technical Management of Glass Door Merchandisers

Maintaining glass door display cases requires balancing thermal boundary isolation, internal circulation, and heat dissipation against shifting ambient humidity. Across commercial venues in Washington, dynamic weather shifts test compressor capacity and anti-sweat systems daily. We implement systematic physical performance monitoring to protect inventory, prevent sudden mechanical lockouts, and ensure operational efficiency.

Commercial glass door display units serve a dual purpose as consumer presentation fixtures and precision temperature containment systems. When operating within factory baselines, these units preserve product freshness, comply with strict health codes, and support consistent retail revenue. Minor technical anomalies, however, rapidly escalate into severe operational problems like inflated energy expenses, premature motor winding failure, and stock destruction.

According to the ENERGY STAR Commercial Refrigerators and Freezers Criteria, certified display units achieve 17 percent to 40 percent greater energy efficiency than non-certified baseline models. Sustaining these performance figures over time requires rigorous oversight across key physical performance pillars.

• Thermal rejection efficiency maintained by keeping condenser surfaces free of dirt and grease obstructions.
• Perimeter climate isolation established through heavy-duty magnetic gaskets and calibrated door-closing hardware.
• Unobstructed internal air turnover sustained by proper shelf layout and open return intake grilles.
• Active moisture management managed through pulse-width anti-sweat controls and verified defrost cycles.
• Precision setpoint stability aligned with energy performance targets to curb continuous electrical draw.

Sub-System Vulnerabilities and Critical Component Breakdown

Commercial merchandisers depend on interdependent thermal loops where a single component breakdown rapidly triggers cascading system failures. When condenser heat rejection degrades or perimeter seals fail, compressors run outside safe operating parameters, accelerating mechanical wear. Recognizing these cascading failure patterns enables technicians to resolve primary defects before high-pressure cutouts or motor burnouts occur.

Refrigeration systems require continuous thermodynamic equilibrium between evaporator heat gain and condenser heat rejection. External environmental factors, such as ambient humidity spikes and airflow obstructions, destabilize this thermodynamic balance and force compressors to labor continuously. In our field diagnostic work across Washington commercial facilities, unaddressed mechanical stress consistently results in burnt compressor motor windings.

Microchannel and Traditional Fin-and-Tube Condensers

Microchannel coils offer superior thermal transfer capabilities in a reduced aluminum footprint, making them common in modern merchandisers. However, their ultra-narrow channel architecture renders them highly susceptible to particulate obstruction compared to traditional copper-tube assemblies. Protecting these exchangers requires specialized, neutral chemical cleaning practices rather than harsh acidic solutions.

Modern commercial display cases frequently utilize all-aluminum microchannel condenser assemblies rather than traditional copper-tube aluminum-fin configurations. Microchannel designs maximize surface area contact and lower total refrigerant charge requirements while enhancing heat transfer rates. Unfortunately, the close spacing between aluminum fins traps environmental dust, airborne lint, and kitchen grease far faster than legacy coil designs.

Particulate accumulation on microchannel surfaces drives condensing pressures upward dramatically. Excessive head pressure elevates compressor discharge temperatures, degrading internal oil lubrication and triggering high-pressure safety switches. We strictly require our technicians to avoid acidic coil brighteners on microchannel metals, relying instead on low-pressure neutral detergents and soft brushes.

Anti-Sweat Heaters and Low-Emissivity Glass Assemblies

Anti-sweat glass assemblies counteract condensation by pairing insulated multi-pane glass and Low-Emissivity coatings with low-wattage perimeter heaters. Pulse-Width Modulation controllers dynamically adjust heater duty cycles based on real-time room humidity inputs. Failure in heater elements or sensors causes persistent glass fogging, floor hazards, and unnecessary compressor runtime.

Glass fogging occurs whenever surface temperatures on the display door fall below the ambient dew point of the surrounding retail space. High-efficiency display doors utilize double or triple-pane insulated glass units treated with Low-Emissivity coatings and filled with inert argon gas. These advanced thermal barriers limit radiant heat transfer from the store interior into the refrigerated cabinet.

Pulse-Width Modulation anti-sweat controllers adjust frame heater power cycles according to data received from ambient humidity sensors. Broken heating wires, degraded controller relays, or drifting sensors lead to heavy condensation on outer glass surfaces and water accumulation on store floors. Furthermore, obscured glass forces compressors to run longer because visible condensation reflects internal thermal imbalance.

Magnetic Perimeter Gaskets and Enclosure Integrity

Magnetic perimeter gaskets create an airtight boundary between cold interior air and warm store environments. Warped, cracked, or demagnetized seals permit humid air infiltration, which rapidly accumulates as frost across evaporator surfaces and chokes internal circulation. Regular magnetic pull testing identifies seal degradation before severe ice accumulation occurs.

Perimeter door gaskets function as the primary hermetic barrier protecting conditioned cabinet air from warm room moisture. When gaskets warp, crack, or lose magnetic force, ambient air streams continuously into the cold display cavity. Water vapor carried within the infiltrating air immediately condenses and freezes upon reaching the cold fins of the evaporator coil.

Heavy frost formation creates dense ice barriers that block fan airflow through the evaporator coil. Our service technicians perform a standard paper pull test along the entire door frame perimeter to verify seal strength. If paper slips through without firm magnetic drag, we immediately realign hinges or replace the damaged magnetic gasket.

Servicing Hydrocarbon Systems Under R-290 Standards

Hydrocarbon systems using R-290 propane refrigerant deliver excellent thermodynamic efficiency but operate under tight 150-gram charge limits per circuit. Charge variances as small as 5 grams compromise cooling capacity, increase compressor work, and cause setpoint drift. Servicing these systems requires intrinsically safe tools and strict safety protocols to comply with environmental regulations.

To comply with environmental guidelines outlined in the EPA Section 608 Refrigerant Management Regulations, commercial equipment manufacturers have shifted toward R-290 natural refrigerant. Hydrocarbon systems exhibit zero ozone depletion potential and an extremely low global warming potential. However, these systems require precise refrigerant charge weights to maintain optimal thermodynamic performance.

A charge variance of just 5 grams can reduce overall cooling capacity significantly while causing compressor operating temperatures to rise. Servicing R-290 equipment requires intrinsically safe recovery systems, spark-proof hand tools, and specialized hydrocarbon service certification. Open flames must never be applied near hydrocarbon lines until the refrigerant is completely evacuated and purged with dry nitrogen.

Diagnostics and Resolutions from Field Case Studies

Diagnosing glass door merchandisers often reveals complex multi-system failures where initial symptoms disguise underlying mechanical or control faults. Systematic diagnostic audits allow technicians to separate root thermal causes from secondary mechanical stresses. Real-world field resolutions demonstrate how structured troubleshooting restores normal operating parameters and prevents recurring equipment failures.

Interconnected system failures in display equipment frequently present symptoms that mimic isolated component breakdowns. Field technicians must systematically measure electrical, pressure, and temperature data to locate true underlying failure mechanisms. Methodical diagnostic workflows prevent unnecessary component replacements and eliminate recurring facility service disruptions.

Resolving Persistent Glass Fogging and Pressure Lockouts

Severe display glass fogging combined with high-pressure safety cutouts typically stems from dirty condenser surfaces combined with drifting humidity sensors. In a Silver Spring retail deployment, our service team corrected chronic compressor trips by flushing blocked heat exchangers and re-calibrating climate sensors. Proper cleaning and sensor recalibration restored normal operating pressures and eliminated condensation.

During a summer heatwave, a supermarket in Silver Spring experienced recurring high-pressure compressor shutoffs on a three-door display cooler. On-site staff repeatedly reset circuit breakers while the display doors remained obscured by thick condensation. Upon our arrival, temperature measurements revealed compressor discharge lines reaching 105 degrees Celsius.

Our diagnostic evaluation showed that while the condenser fan motor operated, kitchen grease and dust had completely sealed the microchannel coil core. Concurrently, the anti-sweat humidity sensor had drifted 15 percent out of calibration, cutting heater duty cycles during high room humidity. We de-energized the unit, applied neutral microchannel cleaning foam, back-flushed the coil with low-pressure water, replaced the faulty humidity sensor, and updated controller software. Discharge line temperatures dropped to 72 degrees Celsius, eliminating pressure trips and completely clearing the glass doors.

Correcting Evaporator Icing in Hydrocarbon Freezer Units

Persistent evaporator icing in R-290 freezers utilizing electronic expansion valves often points to sensor misreadings or seal breaches rather than refrigerant leaks. During an Arlington service call, we resolved severe ice buildup by replacing damaged gaskets and re-securing suction line thermistors. Restoring signal accuracy enabled automatic defrost controls to function properly.

A specialty market in Arlington reported that a two-door R-290 display freezer was accumulating dense ice across the evaporator coil every 48 hours. Store employees were performing manual hot water defrosts daily to preserve inventory from melting. The system was short-cycling continuously and failing to maintain its required temperature setpoint.

Data logging revealed that the electronic expansion valve was hunting wildly due to loose, uninsulated suction line thermistor mounting. The unstable superheat feedback caused alternating evaporator starvation and liquid flood-back, while a torn bottom gasket admitted warm, humid room air. We replaced the torn gasket, realigned the door, re-secured and insulated the thermistor, and re-tuned controller parameters. We verified a stable suction superheat of 4.5 Kelvin, allowing automated defrost cycles to keep coils ice-free.

Commercial Refrigeration Fault Diagnostic Matrix

A structured diagnostic matrix pairs visible operational symptoms directly with underlying mechanical or electrical root causes. Systematic testing procedures allow service personnel to apply targeted corrective measures, reducing diagnostic time and commercial facility downtime. Conditional troubleshooting logical frameworks streamline field service execution across complex commercial display systems.

The following matrix connects observable performance issues with field inspection protocols and required remediation measures:

Operational Symptom	Primary Cause	Diagnostic Test Procedure	Recommended Resolution	Technical Skill Level
Elevated interior cabinet temperature	Clogged microchannel coil, low R-290 charge, failing evaporator fan	Measure superheat and subcooling, verify discharge line temperature, test fan motor current	Clean condenser exchanger, repair sealed system leak, replace fan motor assembly	Certified Refrigeration Technician
Dense ice accumulation on evaporator coils	Failed defrost heater element, defective termination switch, torn magnetic gasket	Test heater electrical resistance, check continuity on termination switch, execute paper pull test	Replace defective heater element, install new bimetal switch, replace magnetic perimeter gasket	Certified Refrigeration Technician
Persistent moisture condensation on glass doors	Broken anti-sweat heater wire, failed humidity sensor, misaligned hinges	Measure voltage across door frame heaters, verify sensor calibration offset, inspect hinge pin alignment	Replace door heater wiring harness, calibrate humidity sensor module, align door frame	Intermediate Maintenance Technician
Compressor runs continuously without cycling	Damaged compressor valves, restricted metering device, drifting sensor probe	Measure differential temperature across suction and discharge lines, check sensor resistance	Replace clogged metering device, replace compressor assembly, recalibrate control module	Certified Refrigeration Technician
Water pooling beneath display cabinet	Clogged condensate drain line trap, failed drain pan heater, unlevel cabinet	Inspect condensate drain line outlet, test drain pan heater continuity, verify cabinet leveling	Clear drain line with dry nitrogen, replace drain heater element, adjust cabinet leveling legs	Basic Maintenance Technician
Buzzing or chatter during compressor startup	Failing start relay module, worn motor bearings, unisolated copper tubing	Measure electrical inrush current, check fan motor shaft play, inspect line clearances	Replace hard start kit or relay, replace fan motor assembly, isolate vibrating tubing	Certified Refrigeration Technician

Operator Decision Framework and Economic Trade-Offs

Commercial facility managers must weigh repair expenses against equipment age, energy consumption, and environmental regulations when evaluating display assets. If repair costs exceed 50 percent of unit value or rely on phased-out refrigerants, replacement yields superior long-term financial returns. Investing in modern hydrocarbon units significantly lowers annual utility expenses.

When managing aging glass door merchandisers, operators must balance immediate maintenance expenditures against ongoing energy consumption. Guidance published in the Federal Energy Management Program Commercial Refrigeration Purchasing Guidance demonstrates that replacing inefficient commercial units with ENERGY STAR certified models saves 300 US dollars or more per unit over its operational lifetime.

We recommend that facility operators apply specific conditional logic based on asset age and component health:

• If a compressor fails on a unit older than ten years operating on R-22 or R-404A refrigerant, prioritize complete unit replacement to migrate to modern R-290 natural refrigerants.
• If a unit under seven years old experiences expansion valve hunting or perimeter gasket wear, execute targeted component repairs to preserve existing asset value.
• If condenser heat rejection failure results from severe microchannel coil corrosion, compute total repair expenses including refrigerant recovery; if costs exceed 50 percent of equipment replacement value, upgrade to a high-efficiency model.

Preventative Maintenance Protocols for Commercial Facilities

Establishing structured preventative care protocols minimizes emergency mechanical breakdowns and maintains optimal thermal performance. Combining routine staff cleanings with comprehensive quarterly technician audits extends component longevity and prevents elevated power consumption. Systematic care preserves display cabinet stability and protects capital investments across commercial facilities.

Scheduled preventative care reduces sudden equipment lockouts and extends the service life of sensitive refrigeration components. Neglecting routine maintenance leads to higher utility bills and accelerates wear on high-value components like compressors and fan motors.

Monthly Operational Maintenance Protocol

Monthly operational maintenance focuses on cleaning accessible perimeter seals, clearing internal air paths, and verifying operating setpoints. Store staff can perform these straightforward tasks without specialized tools or electrical disconnections. Routine visual audits catch developing airflow restrictions before compressor thermal stress occurs.

Facility staff should complete the following sequence every thirty days:

1. Clean magnetic perimeter door gaskets using warm water and mild soap to clear grease and dirt buildup.
2. Inspect internal air circulation grilles to ensure product packages do not block air supply or return vents.
3. Flush and sanitize interior condensate drain troughs to prevent algae growth and drain blockages.

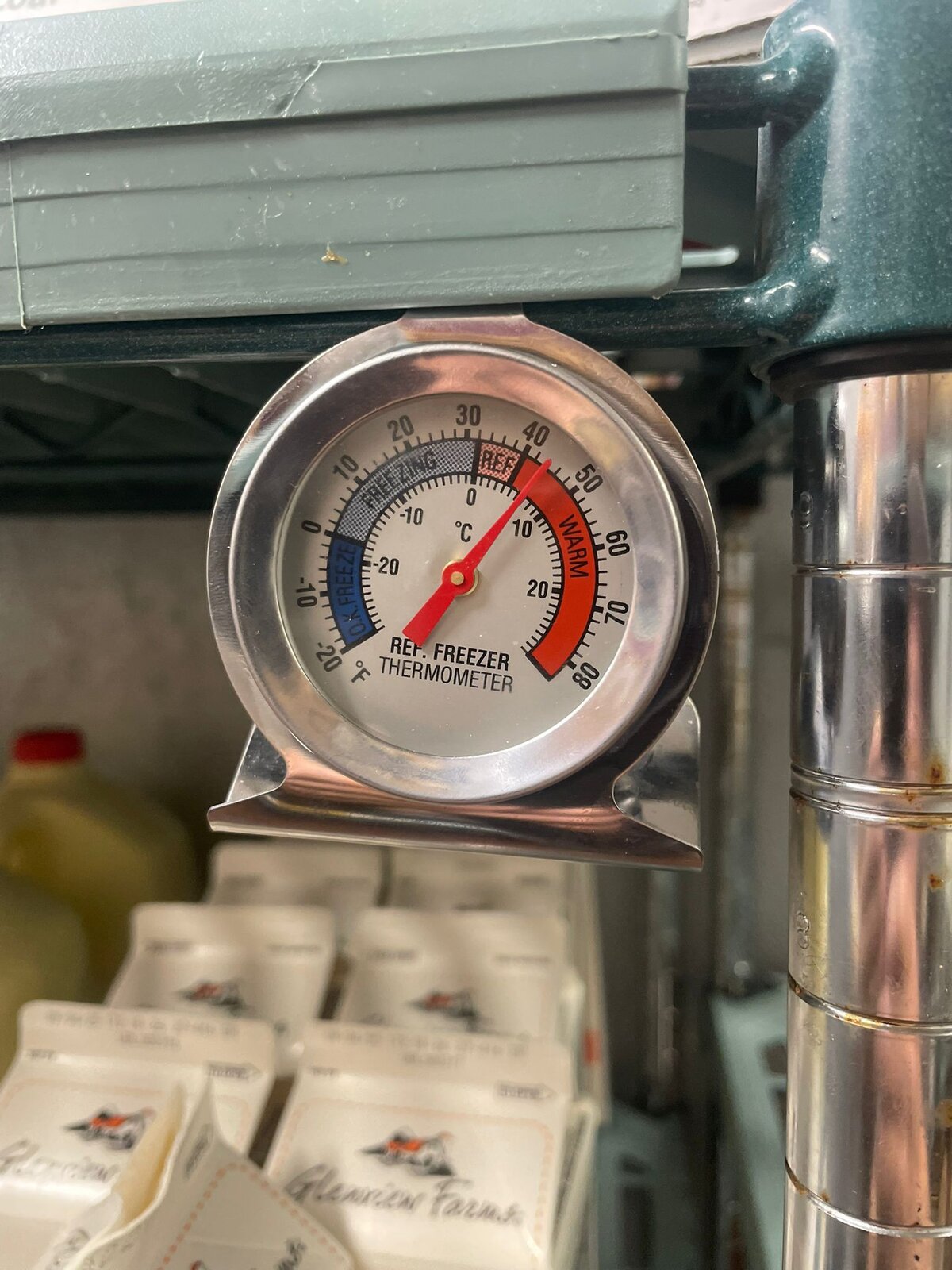

4. Verify digital control setpoints, confirming 1 to 3 degrees Celsius for medium-temp coolers and -20 to -23 degrees Celsius for low-temp freezers.

Quarterly Technical Inspection Protocol

Quarterly technical inspections involve advanced electrical diagnostic testing, physical coil sanitation, and refrigeration cycle optimization. Certified service technicians evaluate superheat modulation, measure motor electrical current, and check sealed system integrity. Detailed technical testing ensures full compliance with environmental regulations and energy efficiency standards.

Our certified technicians execute the following procedural steps during quarterly service visits:

1. Disconnect main power and clean condenser heat exchangers using HEPA vacuums and neutral soft-brush methods.
2. Test electrical continuity across defrost heating elements, drain pan heaters, and anti-sweat door circuits.
3. Measure compressor running amperage against full-load amp ratings on the OEM nameplate to verify motor health.
4. Calculate suction superheat and liquid subcooling to confirm correct expansion valve modulation.
5. Inspect electrical contactors, wiring terminals, and start capacitors for signs of thermal degradation or pitting.

Frequently Asked Questions

How frequently should commercial glass door merchandisers undergo professional maintenance?

Professional maintenance should occur twice annually for standard retail locations and quarterly for high-volume food service operations. Routine coil cleaning, electrical testing, and sensor calibration prevent compressor overwork and prolong equipment service life. Operating units near kitchen cooking grease accelerates coil clogging, making quarterly service necessary.

What immediate action should be taken if cabinet temperatures remain high after cleaning condenser coils?

Disconnect unit power immediately to protect compressor motor windings and contact a licensed commercial refrigeration technician. Persistent high temperatures signal internal mechanical issues such as refrigerant loss, metering device restriction, or damaged compressor valves. Continuous operation under elevated temperatures breaks down oil lubrication and causes catastrophic motor burnout.

How do technicians decide whether to repair or replace an aging merchandiser display unit?

Technicians evaluate repair viability using the Industry 50 Percent Rule paired with long-term energy cost analysis. If repair estimates exceed 50 percent of a replacement unit’s purchase cost, upgrading provides better economic returns. Modern R-290 hydrocarbon display units consume up to 40 percent less power, making replacement highly cost-effective over aging HFC systems.

What safety rules apply when servicing merchandisers containing R-290 hydrocarbon refrigerants?

Technicians must strictly follow EPA flammability safety rules during all R-290 service procedures. Work areas must be actively monitored with combustible gas detectors and ventilated using explosion-proof fan equipment. Unbrazing refrigerant tubing with open flames is strictly prohibited until the hydrocarbon charge is evacuated and purged with dry nitrogen.

Why is interior airflow arrangement critical for glass door merchandiser operational efficiency?

Glass door merchandisers rely on continuous laminar air curtains flowing across inner glass surfaces from top supply vents to return grilles. Blocking intake grilles or overstocking shelves disrupts this protective air curtain and allows warm room air into the interior. Air curtain failure increases cabinet humidity, accelerates coil frosting, and forces longer compressor runtimes.
